Haltech Elite PRO Plug-in ECU - Ford Falcon i6 "Barra" + Onboard Wideband Sensor Kit HT-154006

Regular price $3,245.00 AUD
Regular price Sale price $3,245.00 AUD
Tax included. Shipping calculated at checkout.

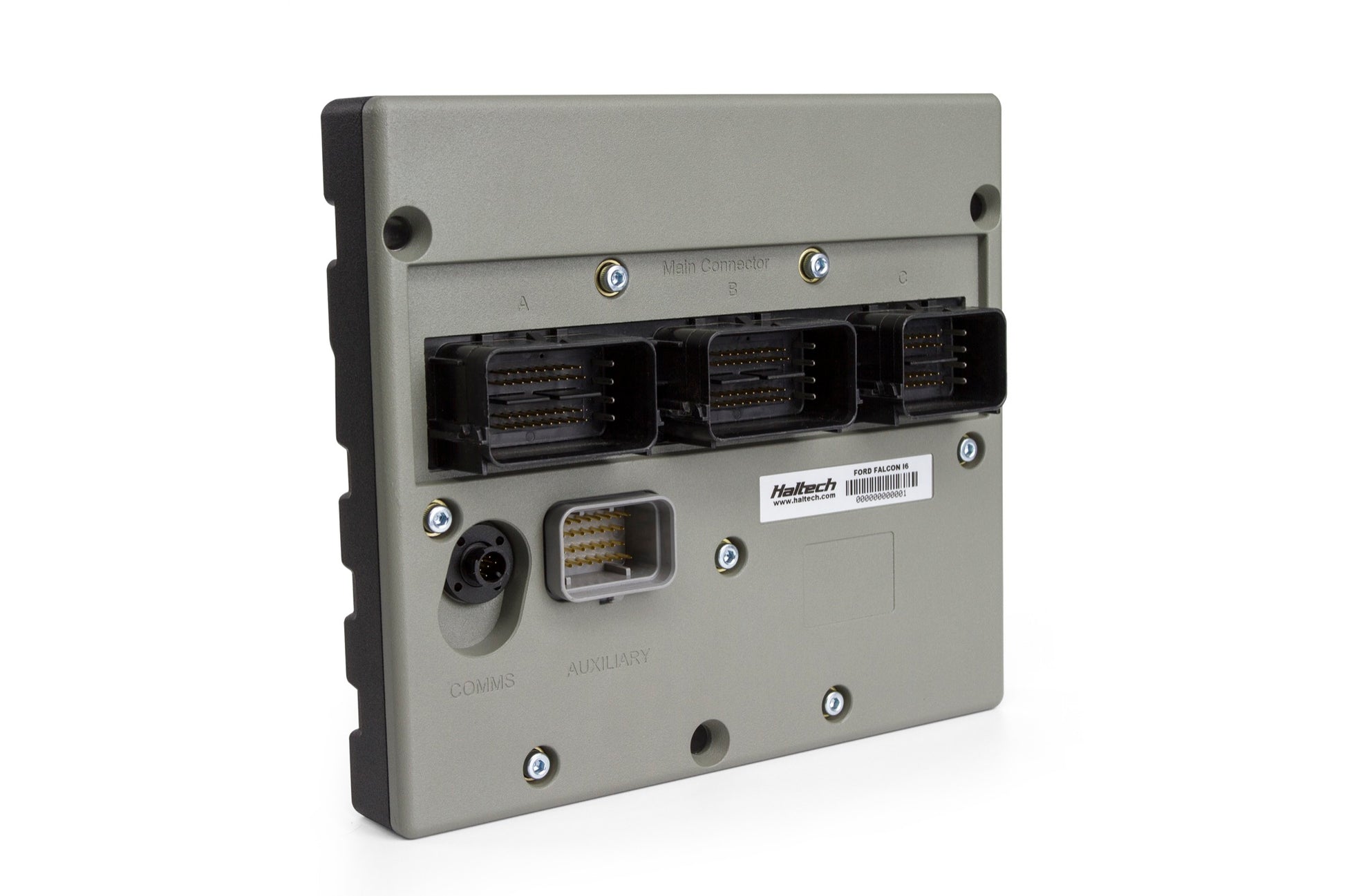

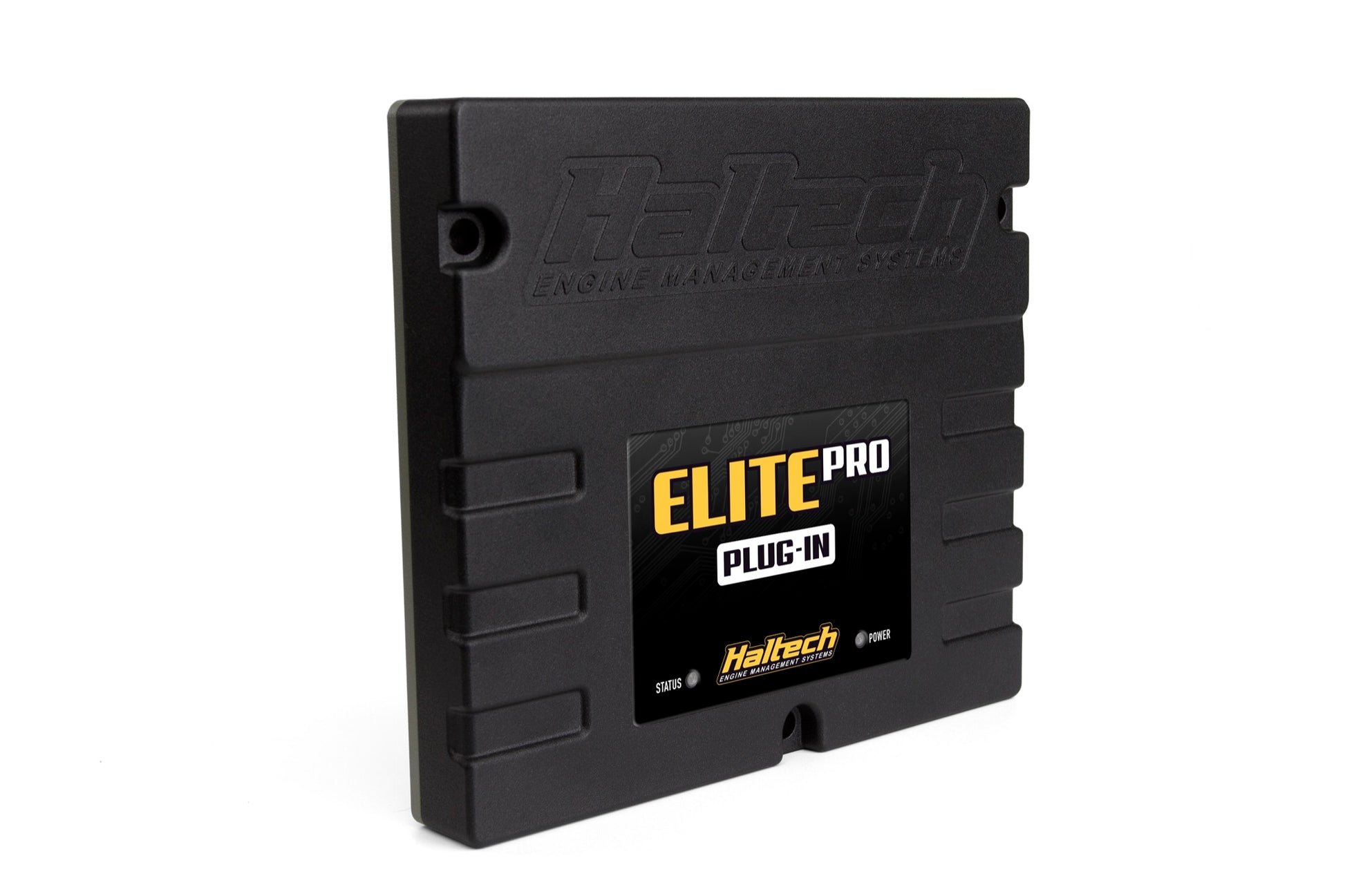

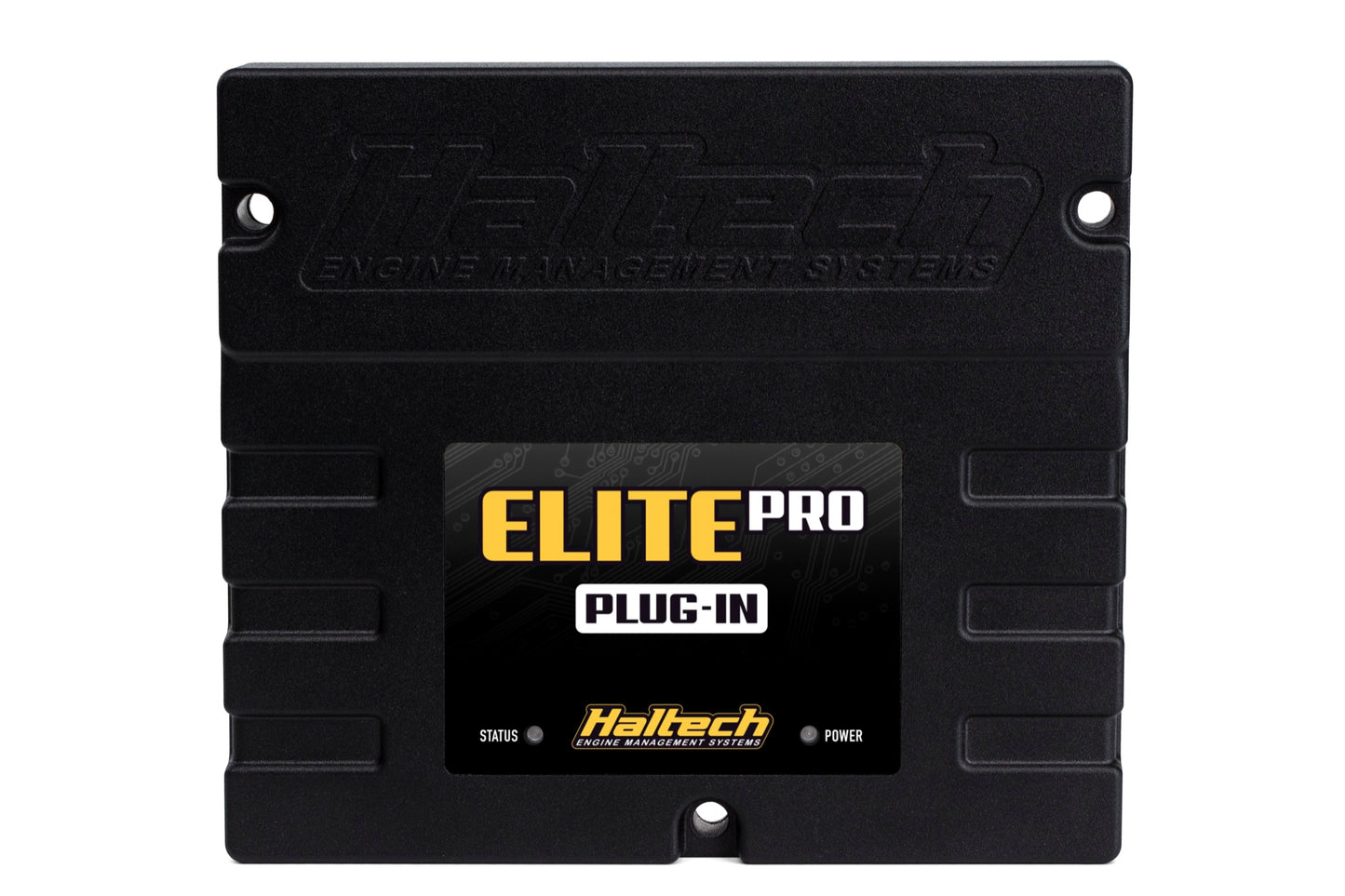

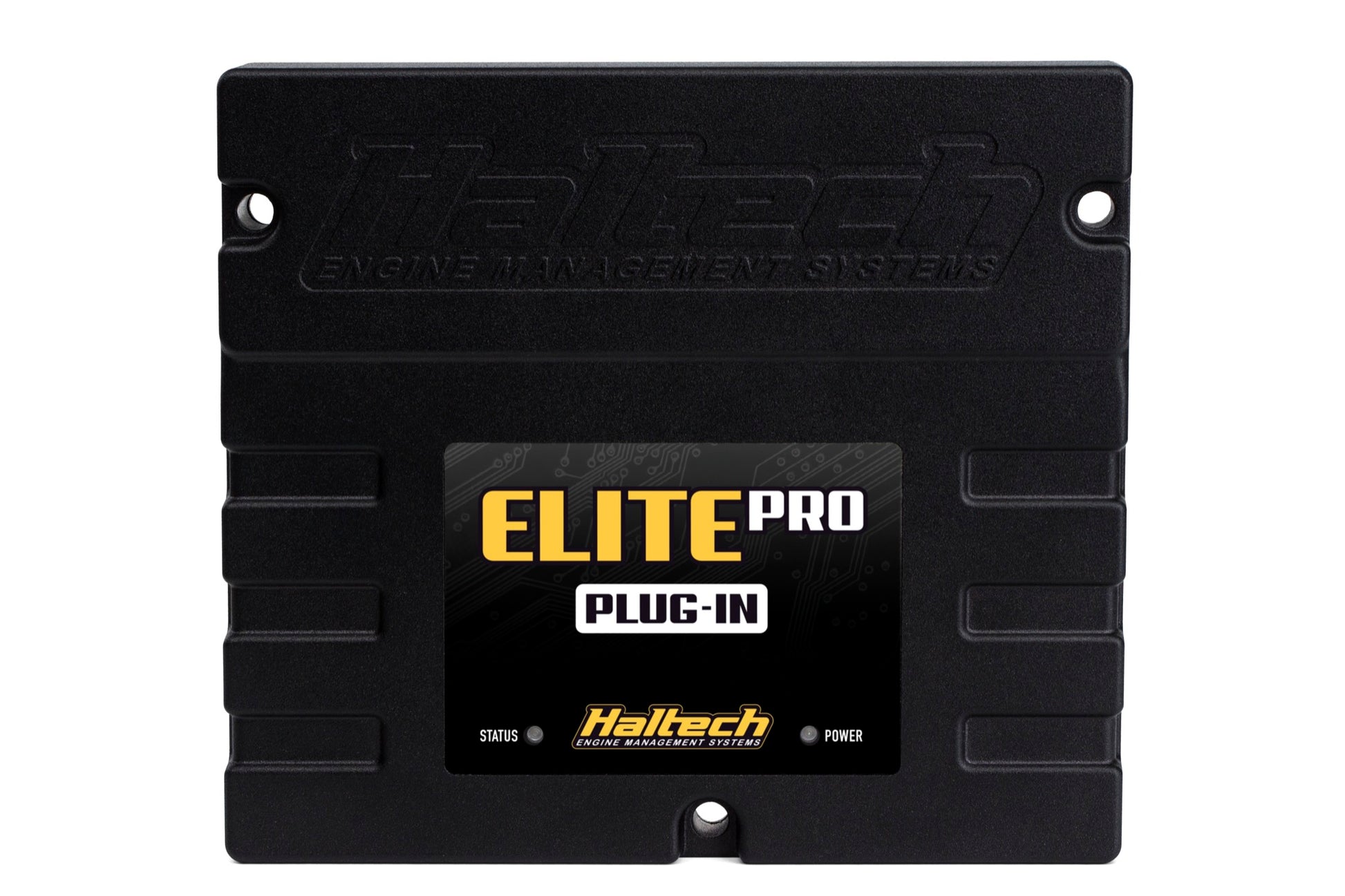

Haltech Elite PRO Plug-in ECU - Ford Falcon i6 "Barra" + Onboard Wideband Sensor Kit
Part No. HT-154006
Suits: Ford Falcon BA (02-05), BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with manual trans. Ford Falcon BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with ZF 6HP26 6-speed auto. Naturally aspirated and turbo.

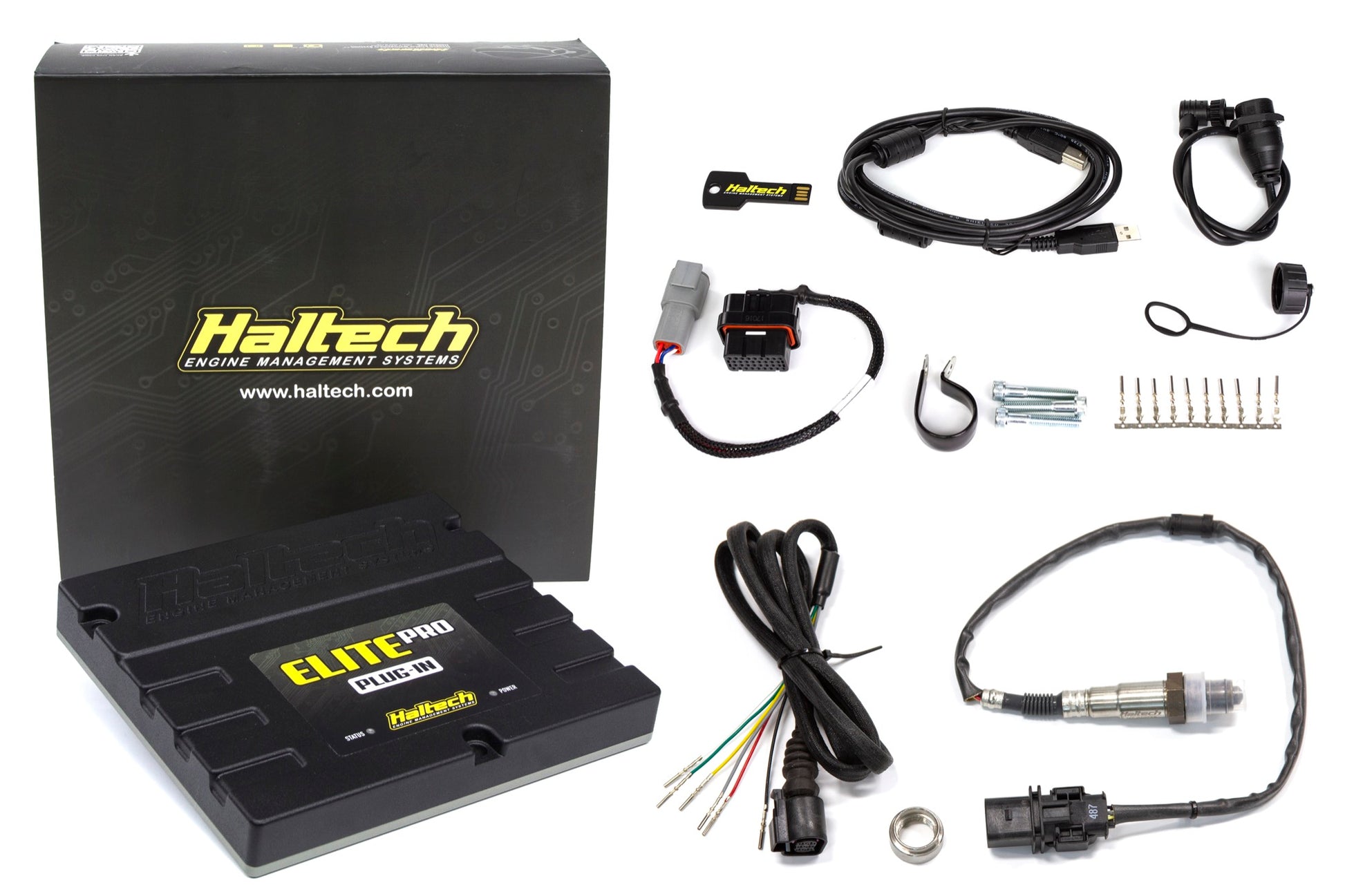

Includes: Haltech Elite PRO Plug-in ECU, Auxiliary I/O harness with AMP 34 Pin 4 row 4 keyway superseal connector, 300mm (12") Elite CAN DTM-4 female receptacle/socket, 30 waterproofing/blanking pins and 10 spare pins to populate auxiliary I/O positions. Wideband hardware pack with LSU 4.9 sensor, 1.2m (4) harness and weld-on sensor bung. 400mm (16") Waterproof (Type B) USB Connection Cable to Mini Circular with waterproof cap.
Length: 2.5m
Availability: Back Order-Call 0249567996 to discuss

Features:
ECU OUTPUTS
  • 6 x current controlled injector drivers (OEM). High or Low impedance injector compatible.
  • 8 x additional injector outputs available for staged injection, unused staged injector outputs are available to be used as generic programmable DPOs.
  • 6 x ignition outputs to support OEM Ford coils directly
  • Digital pulsed outputs - as per OEM.
  • Drive By Wire (DBW) output suits any throttle body and pedal including Ford OEM
ECU INPUTS
  • Analogue voltage inputs (AVI): as per OEM.
  • 4 x additional user definable AVIs available on the auxiliary connector.
  • Digital pulsed inputs (DPI): as per OEM.
  • 4 x additional user definable DPIs used for measuring duty cycle, frequency or state.
  • Engine position inputs: as per OEM. Supports Ford Barra trigger pattern. Alternate generic trigger support also available.
  • Knock inputs: as per OEM.
ECU COMMUNICATION
  • 2 x CAN bus communication.
  • Haltech CAN (via auxiliary connector).
  • Vehicle CAN.
  • 1 x Circular mini connector for USB programming.
ECU DATA LOGGING
  • On-board data logging. Up to 40 channels.
  • 2MB internal storage
