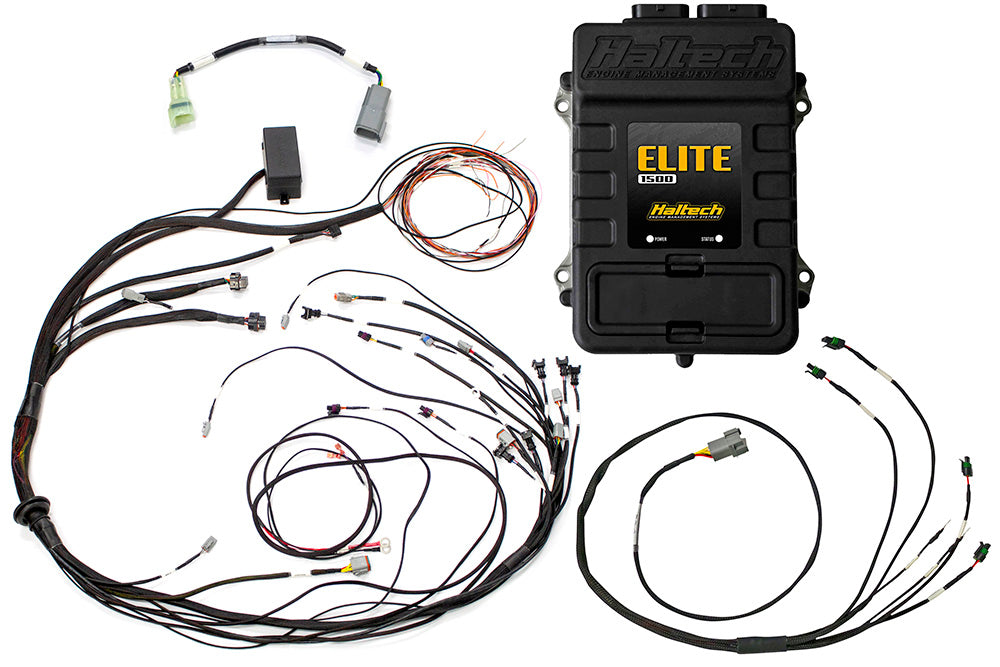

Haltech Elite 1500 + Mazda 13B S4/5 CAS with IGN-1A Ignition Terminated Harness Kit HT-150978

Regular price $3,277.50 AUD
Regular price $3,450.00 AUD Sale price $3,277.50 AUD
Tax included. Shipping calculated at checkout.

Part No. HT-150978

Suits: S4/5 CAS (Crank Angle Sensor) WBC1 CAN O2 Wideband Controller ready (Controller and sensor not included)

Includes: Elite 1500 ECU with DBW and Race Functions, engine harness with fuse block, firewall grommet and pre-wired High Output IGN-1A Inductive Coil (with built-in Ignitor) Ignition Harness, USB programming cable and USB Software Key.

Notes: IGN-1A coils are NOT included. Please order 4 x HT-020114 if required

Availability: Back Order- Expect to ship within 2-4 Weeks

Overview:

High Output IGN-1A Coil Terminated Ignition Harness

  • The Haltech Mazda 13B Ignition Harness connects to the Haltech IGN-1A ignition coils
  • Recommended as an add-on to the Elite 1000/1500 Terminated Engine Harness for Mazda 13B.

 ECU OVERVIEW

  • Supports 1 to 12 cylinder engines
  • 2 rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Staged, sequential, semi sequential, batch or multipoint injection patterns
  • Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
  • Connect to a wide range of display dashes and expansion devices via CAN.
  • 4 x fuel injection outputs
  • 4 x ignition outputs
  • 12 x digital outputs
  • 10 x analogue voltage inputs
  • 4 x synchronised pulsed inputs
  • 3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor)
  • 2 x dedicated engine position inputs with extensive trigger type support
  • Up to 45 channels of Input & Output (I/O) expansion (via CAN)
  • USB laptop communication (Windows)
  • ESP Calibration Software - intuitive and easy to use

Features:

ECU FEATURES

  • Drive by Wire Throttle Control (DBW).
  • Low Impedance Injector control with programmable injector peak and hold currents and programmable peak time.
  • Flex fuel support (Direct sensor input). Tune your engine's boost, fuel and ignition by ethanol content.
  • Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol.
  • Closed Loop 02 Control. Dual bank control for precise tuning (with optional external CAN O2 Wideband Controller Kit).
  • Knock Control. Synchronised to engine position with high speed digital filtering for accurate detection.
  • Variable cam control - Independently control up to 4 camshafts.
  • Closed Loop Idle Speed Control with learning for consistent idle stability.
  • Long term learning (auto tune) on fuel, ignition, cam, boost and idle control maps (up to 4D).
  • On-board data logging. Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory.
  • Laptop data logging. DLog all available channels directly to your laptop's hard drive for both tuning and diagnostics.
  • Dual CAN Bus communication for Haltech dashes and expansion devices. Supports OEM CAN and OBDII. View live engine data and set/clear diagnostic trouble codes.
  • 1 - 4 Injection stages with individual injector flow rates per injector.
  • Anti-Lag/Rotational idle for closed course racing, rally, circuit or drift. Build and maintain boost during closed throttle conditions.
  • Rolling Anti-Lag. Lock to your current or pre-set RPM or road speed for roll racing or pit lane limiting.
  • Launch Control. Control your engine's power delivery, RPM and boost for consistent performance at the start line.
  • Traction Control. Control your engine's power output via mappable front vs rear axle or individual wheel speed slip.

ADVANCED TUNING

  • Tuning table resolution up to 32 x 32 x 8
  • Limitless tuning flexibility. Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user-definable corrections.
  • Per Cylinder Tuning Correction - 3D
  • Wideband O2 Control. Connect up to 9 channels via CAN expansion devices.
  • Thermocouples/EGT (Exhaust Gas Temperature). Connect up to 12 channels via external CAN expansion devices.
  • Advanced Engine Protection. Set multi-level limits for sensors and protect your engine against common causes of failure.

RACE FUNCTIONS

  • Nitrous control with advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays and banked control options. 3D fuel and ignition corrections for all stages.
  • Boost control. Intelligent 4D closed loop learning with flexible, user-definable axis and 14 fully user-definable corrections.
  • Sequential turbo control
  • CO2 boost control. Wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hard-core racer.
  • Flat shifting. Optimise your shifting precision via a combination of inputs such as a clutch switch or strain gauge.
  • Shock Travel/Ride Height inputs allow dynamic tuning and data logging to assist in chassis development and power delivery.
  • Timer functions. Use the combination of the race timer and 5 additional programmable timers for time-based control of multiple engine parameters, power delivery and other user definable functions.
Trans brake function allows smooth and consistent control of start line staging (Bump or Creep).
